OIL & GAS ENGINEERING SOLUTIONS
Well Safety Control System
Surface Safety Solutions provide our clients with fail-safe surface safety valves (SSV) and reliable control panels for standard and demanding operations, such as production, well intervention and stimulation. At Carbon Smart, we are committed to providing sustainable solutions to businesses and organizations. Our mission is to promote environmental protection and conservation through our services.
Standard Control Panel Features
- Sequential valve opening and closing
- Monitor flowline pressure status
- Emergency shutdown
- Manual override
- Fire safety shutdown
- Any combination of hydraulic and/or pneumatic valve actuator controls
- Remote telemetry control
- Easy serviceability
- Corrosion resistant type 316 stainless steel (SS)
- Removable doors for easy access to panel components
Single Well Control Panel

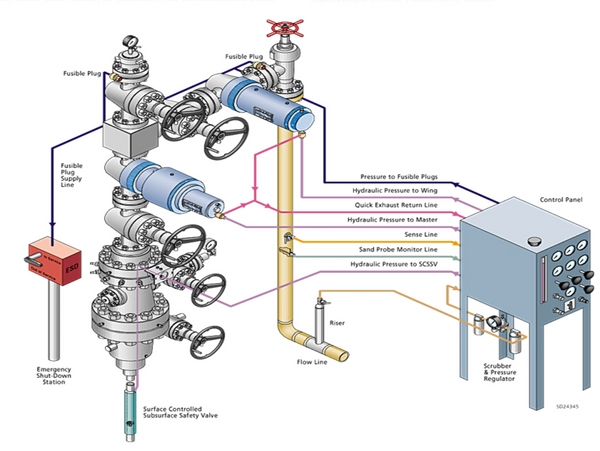

The standard single well control panel is designed to operate one hydraulic controlled subsurface safety valve and up to two hydraulic (or pneumatic) controlled surface safety valves for any type of well.
It automatically closes the safety valves in response to alarm conditions requiring shut-in.
Safety valves can be shutdown either manually or automatically, at the panel or remotely.
Some panels include logic, enabling the wells to be controlled by an ESD/temperature safety element (TSE) plug loop and high/low process pressure pilot. The panel monitors the status of the flowline high-low pressure sensors and provides shut-in of the well during emergency conditions.
It is available with a wide selection of options to ensure that your particular production requirements are addressed.
Multi-Well Control Panel
Multi-well control panels are a combination of standard pneumatic, hydraulic and electronic based logic in a single integrated solution for multiple wells in both onshore and offshore applications.
The multi-well control panel is a fail-safe system using control logic.
Solutions can be completely customized to meet customer operational requirements from weight and footprint layout to operational functionality.
We also offers standard designs where client preferences are not defined.
As an option, our multi-well control panels can incorporate removable and interchangeable well control modules, each controlling a single well.
Any well module can be easily isolated and removed without affecting the operation of any other part of the well control panel.
Existing modules can be removed and a spare module installed with a minimum of downtime. These custom designed panels can be built to accommodate any number of wells.
There is also an option to add a functional PLC to the panel.
Hydraulic Surface Safety Valve
The Piston range of hydraulic Control Fluid Powered linear actuators is designed to be used in conjunction with valve bonnets to provide open and close control for major brands of API 6A through conduit reverse acting gate valves fitted to oil and gas wellheads and production flow lines.
Suitable for offshore and onshore locations and ideal for use in H2S and CO2 applications, the range of hydraulic piston actuators provides a simple and reliable valve automation solution, These actuators will be available in 5”, 6”and 8”diameters, suitable for valve sizes 1-13/16” thru 4-1/16” (bonnets for valve sizes).
Pneumatic Surface Safety Valve (Piston type)
The Piston range of pneumatic Control Fluid Powered linear actuators are designed to be used in conjunction with valve bonnets to provide open and close control for major brands of API 6A through conduit reverse acting gate valves fitted to oil and gas wellhead Christmas trees and production flow lines.
Suitable for onshore and offshore locations and ideal for use in H2S and CO2 applications, the PHI range of piston actuators provides a simple and reliable valve automation solution. These actuators will be available in 10“ and 14” diameters, suitable for valve sizes 1-13/16“ thru 4-1/16”.
Pneumatic Surface Safety Valve (Diaphragm)
The diaphragm range of pneumatic Control Fluid Powered linear actuators is designed to be used in conjunction with valve bonnets to provide open and close control for major brands of API 6A through conduit reverse acting gate valves fitted to oil and gas wellheads and production flow lines. These actuators can also be used with API 6D and ANSI B16. 34 valves where the bonnets are built to the design.
Suitable for onshore and offshore locations and ideal for use in H2S and CO2 applications, the range of diaphragm actuators provides a simple and reliable valve automation solution. These actuators are available in 10“ , 12”, 16” and 18” diameters, suitable for valve sizes 1-13/16“ thru 4-1/16” API.
